The Soldering Station Kit with Digital Multimeter includes:

• Soldering station with the soldering iron
• Solder wire spool holder
• Multimeter with Premium Probes

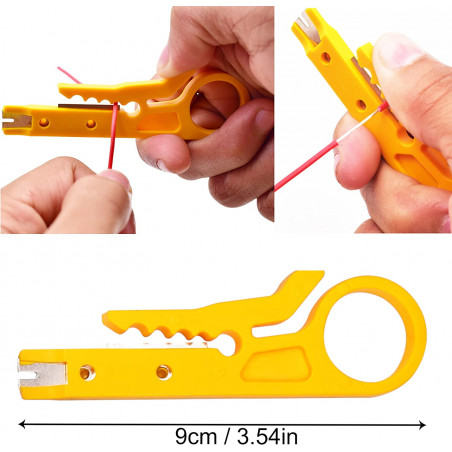

• Mini Wire Stripper Tool
• Tweezers (Curved ESD-15, Straight Tweezers ESD-11)
• Tin Wire Solder Spool and Desoldering Pump
• Black 22 and Red 22 AWG Wire
• 5 pcs Soldering Iron Tips
• Solder Wick and Soldering Paste
• Mini Screwdriver and Mini PCB
• Heat Shrink Tube Kit
• Insulating Tape (black, red, and yellow)
• Flyer containing instructions on how to download the user guide

Soldering Tips and Techniques: 1. Please always be careful when using these tools and check the safety tips when working with soldering iron and related activities 2. Please select a suitable temperature when soldering. 3. Lower down the temp or turn off the soldering station when not to be used for longer periods of time (do not let it be idle) to avoid damage to the iron and tips. 4. If something unusual happens with the product and if you are not familiar in fixing it, unplug it and do not do anything and contact seller for assistance)

The Plusivo Soldering Station Kit is a set that contains a complete soldering needs that includes common tools used for soldering including a Multimeter. Included are some tools and items that are needed in both soldering or desoldering with an Ebook which you can download using the claim code to guide you in your soldering journey.

NOTE:

California Prop 65 Warning: The solder wire of this product contains chemicals known to California to cause cancer and birth defects or other reproductive harm. Remind to wash your hands after using it.

Soldering Station Features:

• Digital Display with °C/°F Conversion
• Temperature Locking Function
• Fast Heating up & PID Control
• Adjustable Temperature 212-932℉ (100- 500℃) - to set the optimal temperature based on the solder alloy composition that you use
• Compact Design & Comfortable Grip
• ESD Safe and with Manufacturer Guarantee
• Soldering iron has Four Ventilation Holes - for quick heat dissipation
• Heat Resistant Grip - for safety when holding the soldering iron

5 pcs Replaceable Tips

• Soldering iron tips varies in size and shape for different types of work

Tin Wire Solder Spool Holder/Helping Hands

• You can use the solder holder for easy dispensing of solder wire spool for smooth feeding of the solder wire during use

The Plusivo compact digital multimeter can be used to measure DCvoltage, ACvoltage, DCcurrent, and resistance. It can also test diodes (forward /reverse bias), and circuit continuity. This multimeter is the ideal tool for electronics and electrical circuit debugging needs.

Voltage Measurement

• DC-voltage: 200mV/2V/20V/200V ±(0.5%+4), 600V ±(1%+5)

• AC-voltage: 0 to 600V, 200V/600V ±(1.2%+10)

DC-Current Measurement

• DC-current: 0 to 10A

• DC-current: 2mA/20mA/200mA ±(1.5%+3), 10A ±(2%+5)

Resistance Measurement

• Resistance: 0 ohms to 2 M ohms

• Resistance: 200Ω ±(1%+5), 2kΩ/20KΩ/200KΩ ±(0.8%+3), 2MΩ ±(1%+15)

Battery and Continuity Test

• Battery Quality Test: This multimeter is capable of measuring battery quality for 1.5V and 9V batteries (old models measures the amount of current it can provide, which can be used to assess battery quality)

• Continuity Test: Connect the test leads to two points on the circuit being tested.

Voltage Measurement

• Insert black wire to "COM" and red wire to the "V/Ω" port
• Set the knob to corresponding DC voltage range (AC or DC) and then put the test probes to the source to be measured

Current Measurement

• Insert black wire to "COM" and red wire to the "V/Ω" port if measuring up to 200 mA
• For 200 mA to 10 A, the red probe should be inserted to the 10 A DC port.
• Set the knob to the corresponding DC current range and put the 2 probes in series with the part of the circuit that you want to measure

Resistance Measurement

• Insert black wire to "COM" and red wire to the "V/Ω" port
• Set the knob to corresponding resistor range and connect the two test probes to the element you want to measure

Battery, Continuity and Diode Test

• Battery Quality Test: Insert black wire to "COM" and red wire to the "V/Ω" port. Rotate the knob to the corresponding battery you want to measure. Old models display current in mA as indicator of battery quality
• Continuity Test: Connect the test leads to two points on the circuit being tested.
